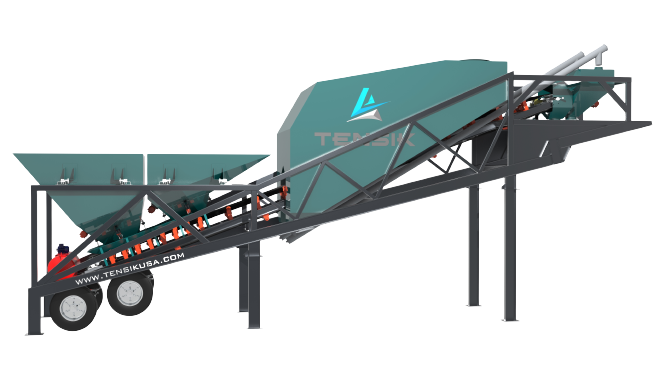

The RAPTOR, a sophisticated system designed for concrete plant and cement industries, boasts two scale hoppers bins decummulator, each with an 8yd capacity, and is equipped with eight 20000lb load cells, and a pneumatic cylinder for gate operation. Its belt conveyor features a 40ft length, 24-inch belt, a 15hp electric motor, and a pendular speed reducer with double discharge selection. The cement setup includes a 45-ton custom silo, fluidizing kit, pressure valve, dust collector, 4-ton scale, four 2500lb load cells, and batch controllers. Completing the package is a 5hp digital water pump system.
Portable System:
– 2 scale hoppers bins decummulator with full weight capacity of 8yds each
– 8 load cells with a capacity of 20000lb each
– Pneumatic cylinder activated by solenoid valve to open and close the gates
– 2 MVE electric vibrator
Belt Conveyor:
– 40ft long conveyor Cema B with 24inch belt
– 15hp electric motor
– Pendular speed reducer double discharge selection
Cement System:
– 45-ton custom cement silo
– Fluidizing kit, pressure valve, dust collector
– 4 tons cement scale, 4 load cells 2500lbs with electric vibrator
– Automatic batch controller and manual controller
– Air compressor 7.5hp
– 2 Axle 20.000lb each
Water System:
– 5hp electric water pump with digital output-Badger meter with electronic output
