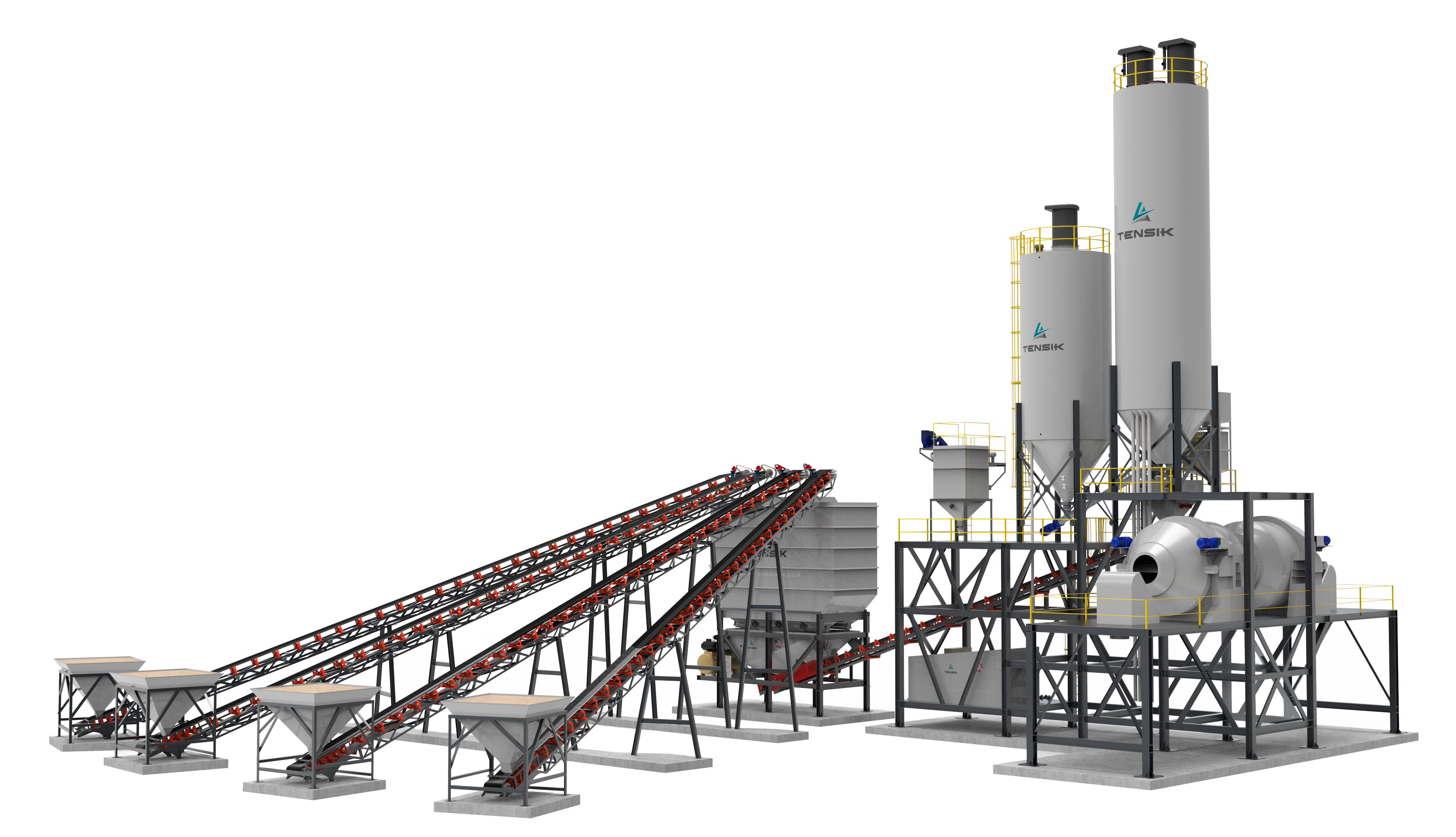

The ALPHA CMX1 is a wet stationary concrete batching plant designed for large-scale, high-quality concrete production with integrated mixing capability. Unlike dry batch systems, the CMX1 incorporates a wet batching process for improved consistency, reduced variability, and tighter control over mix quality.

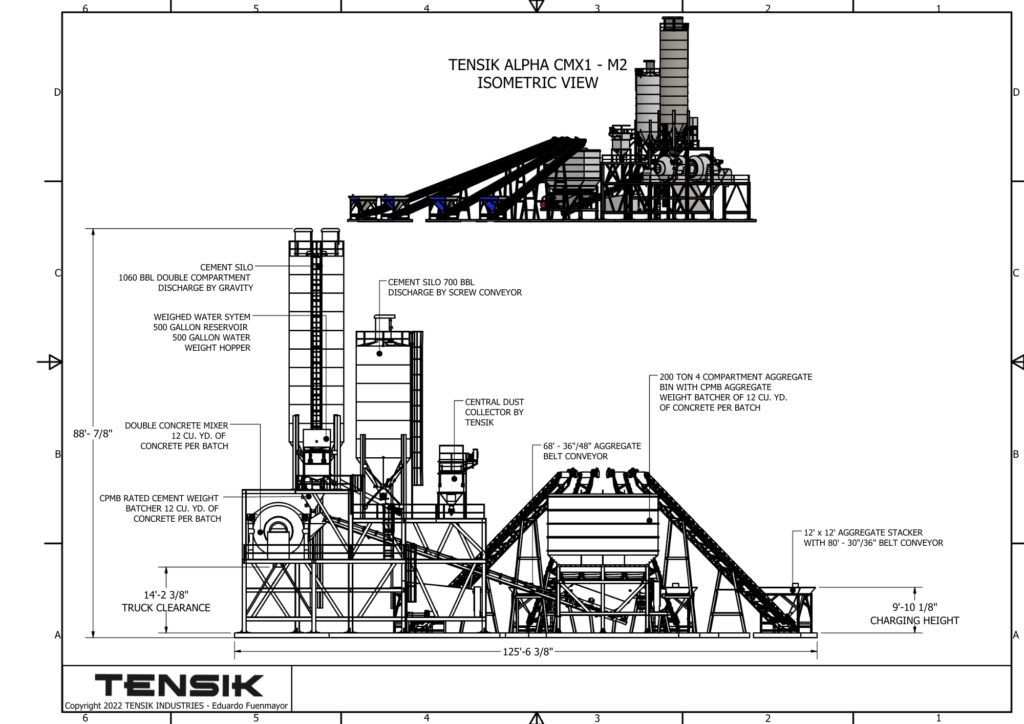

The system is engineered around a 12 yd³ CPMB-rated aggregate batcher, a 1200 BBL split round cement silo, and a fully integrated aeration and pneumatic system. It also includes a radial stacker conveyor, turnhead aggregate system, and dual dust collection system to support continuous high-output operation.
Designed for permanent or semi-permanent installations, the CMX1 is ideal for infrastructure, commercial, and industrial projects requiring reliable wet concrete production at scale.
| Specification | Detail |
|---|---|
| Plant Type | Wet Stationary Batch Plant |
| Aggregate Batcher Capacity | 12 yd³ CPMB rated |
| Aggregate Storage Capacity | 200 tons (4 compartments) |
| Cement Silo Capacity | 1200 BBL split round silo |
| Water System | 3″ mag meter with 10 HP pump |
| Air Compressor | 20 HP / 120-gallon |
| Conveyor System | Truck conveyor + radial stacker |
| Batch Truck Capacity | 12 yd³ |
| Dust Collection | Dual WAM Silotop Zero systems |
Actual output depends on mix design, cycle time, and plant configuration.
| Specification | Detail |
|---|---|
| Transfer Conveyor | 30″ × 42 ft |
| Drive Power | 15 HP |
| Radial Stacker Conveyor | 30″ × 100 ft |
| Hopper Size | 10 × 12 |
| Aggregate Storage | 4 compartments / 200 tons |
| Distribution System | Turnhead system |
| Wear Protection | AR400 liners |
Included (Standard): Dual WAM Silotop Zero systems with high-efficiency pulse-jet filtration (99.99%) installed on cement handling and discharge points for environmental control and dust mitigation.
| Specification | Detail |
|---|---|
| Plant Type | Stationary Wet Batch Plant |
| Aggregate System | 4-compartment / turnhead distribution |
| Cement System | 1200 BBL split round silo |
| Mixing Type | Wet batching configuration |
| Installation Type | Permanent or semi-permanent |
| Operation | High-volume continuous production |
The ALPHA CMX1 is compatible with advanced automatic batch control systems depending on project requirements.
Controller integration available upon request.
Is the ALPHA CMX1 a wet or dry batch plant?
The ALPHA CMX1 is a wet stationary batching plant designed for controlled, high-consistency concrete production.
What is the production capacity?
Capacity depends on configuration, but the system is designed for high-volume continuous industrial production using a 12 yd³ batching system.
What aggregate storage is included?
The plant includes a 4-compartment system with a total capacity of 200 tons and a turnhead distribution system.
Does it include dust collection?
Yes — dual WAM Silotop Zero dust collectors are included as standard.
What cement system is included?
A 1200 BBL split round cement silo with aeration system, level sensors, and gravity discharge is included.
What water system is included?
A 3″ metered water system with a 10 HP pump is included for precise batching control.
Is the system automated?
Yes — the plant is designed for integration with automatic batch control systems and can be upgraded with advanced automation.
