DECUM

Portable / Modular Concrete Batching Plant Portable high-capacity batching system engineered for rapid setup, integrated hydraulic self-erection, and single-truck mobility.

Overview

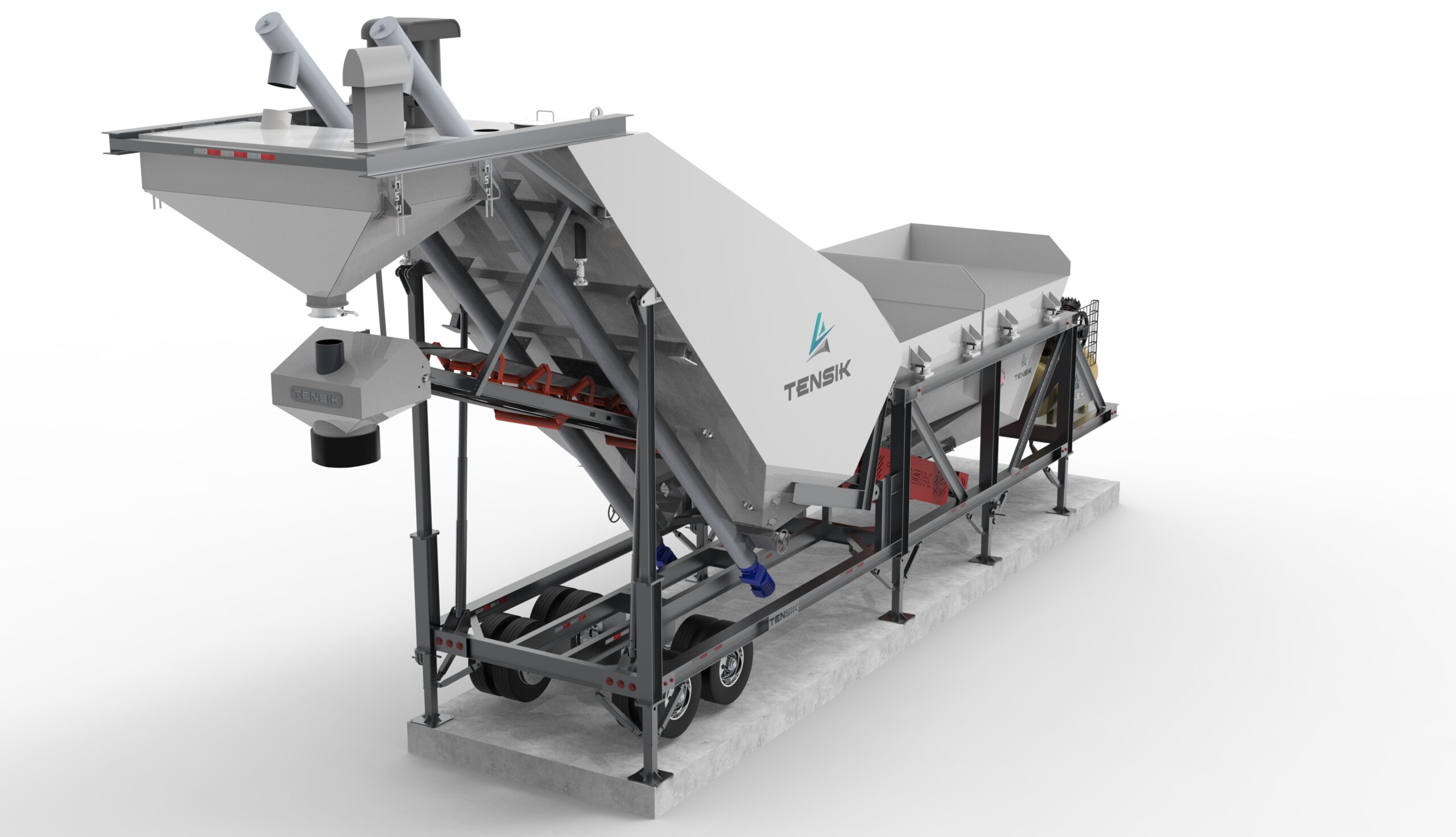

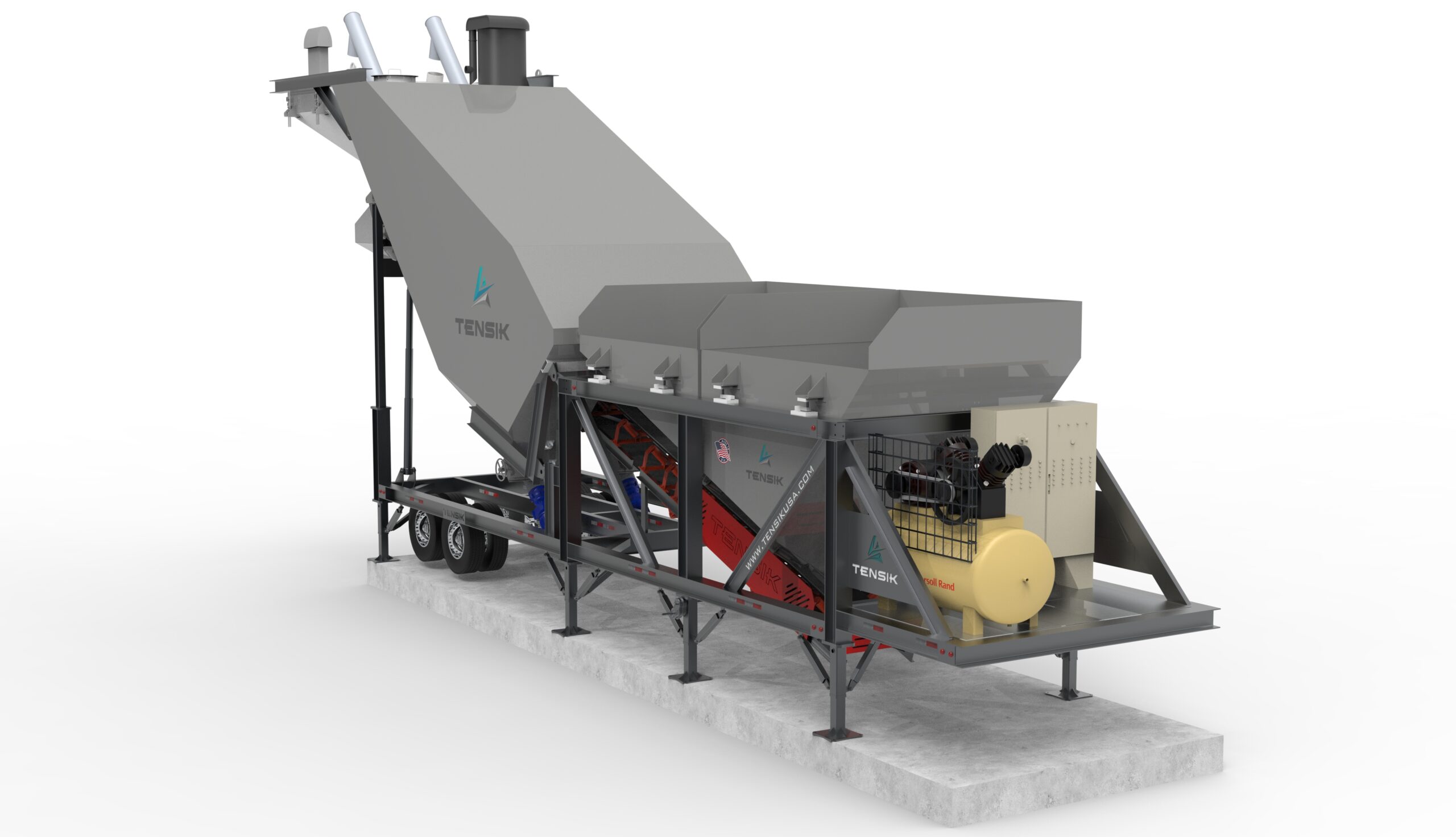

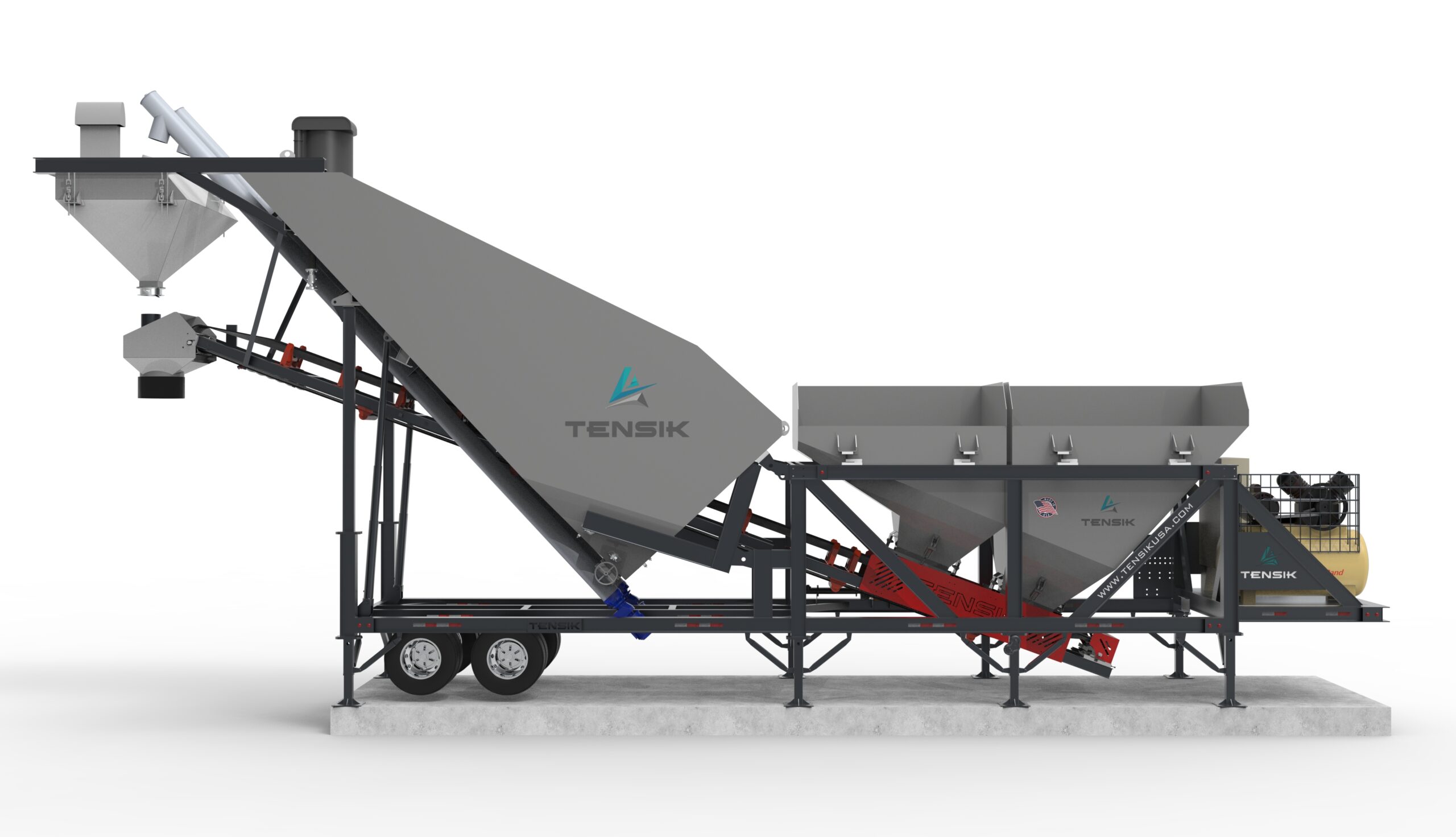

The DECUM 1 is a portable concrete batching plant designed for high-efficiency concrete production while maintaining fast deployment and transportability. Engineered for quick setup and relocation with a single truck, the DECUM combines high-capacity aggregate handling, integrated cement storage, automatic water metering, and a self-erecting hydraulic system into a compact modular solution.

Built around a dual-bin 12 yd³ aggregate batcher, dual 10″ cement transfer screws, a 58–60 ton cement silo, and a 30″ transfer conveyor, the DECUM is capable of producing consistent, high-quality concrete with reliable material handling and batching precision. The plant includes a central lubrication system, complete pneumatic package, and all equipment is factory-wired and tested prior to shipment.

Performance

Specification	Detail
Batching Mode	Dry Batch
Aggregate Batcher Capacity	12 yd³
Aggregate Bin Configuration	Split in 2
Cement Silo Capacity	58–60 tons / 400 BBL
Cement Batcher Capacity	5 tons
Water Pump	10 HP
Air Compressor	10 HP / 240-gallon
Transport Configuration	Tandem axle transportation system
Mobility	Portable — movable with one truck

Actual output depends on mix design, moisture conditions, truck cycle time, and site logistics.

Key Features

Portable plant designed for quick setup and relocation with one truck
Self-erecting hydraulic system for rapid deployment
12 yd³ aggregate batcher split into 2 compartments
30″ × 39 ft aggregate transfer conveyor with 15 HP drive
58–60 ton cement silo with WAM Silotop Zero dust collector
Dual 10″ cement transfer screws powered by 25 HP motors
5-ton cement batcher suitable for full 12 yd³ truck batching
3″ Badger metered water system with 10 HP water pump
Tandem axle transport configuration
Central lubrication system
Complete pneumatic package with weather-tight NEMA enclosure
Factory-wired and tested electrical system
Automatic batch controller included

Details

Standard Configuration (What’s Included)

Aggregate System

12 yd³ aggregate batcher split into 2 sections
2 scale hopper bins sized for 12 yd³ concrete capacity
3/16″ plate vertical sides and 1/4″ plate sloped sides
(2) clamshell gates
(2) 4″ × 8″ air cylinders with inching valve for precise material flow control
Proximity switch confirms gate closed position
(2) MVE Oli electric vibrators
4 × 20K NTEP-certified load cell system
Test weight hangers installed
Central lubrication system

Aggregate Transfer Conveyor

30″ belt width × 39 ft conveyor
15 HP TEFC drive motor with reducer and backstop
Belt speed: 350 FPM
Capacity: 650 TPH
CEMA B idler and return rollers
4″ idler and return rollers
12″ drum pulley and wing pulley
Self-cleaning blade
Skirt boards installed
Discharge head includes water inlet and (5) admixture ports

Cement Storage System

58–60 ton cement silo (400 BBL)
Fluidizing kit with 8 aeration pads in silo cone
10″ butterfly valve or slide gate depending on configuration
Cast iron disc with pneumatic drive actuator
1/2″ 4-way double solenoid closed port
High and low silo level indicators
Pressure relief valve
WAM Silotop Zero dust collector
- 264 sq ft filter surface
- Pulse-jet air cleaning system
- 7 polypleat filter elements
- 99.99% filtration efficiency
- Bottom mounting flange
(2) 10″ cement transfer screws
Dual 25 HP WAM screw conveyor drives
Self-erecting hydraulic system integrated into silo structure

Cement Batcher

5-ton cement batcher
Capacity sufficient for 12 yd³ truck batching
10″ butterfly discharge valve with pneumatic actuator and solenoid
Proximity switch confirms closed gate position
Full aeration system with full-size pads
MVE vibrator mounted
(4) S-beam style load cells with summing box
Test weight hangers included
HOPPERJET WAM system

Air System

10 HP / 240-gallon INGERSOLL RAND air compressor
3/4″ air outlet
Weather-tight NEMA enclosure for plant solenoids
Individual quick shut-off valves for easy maintenance isolation
Complete pneumatic piping system to all plant equipment
5 HP regenerative blower for aeration
173 CFM blower capacity
230/460V configuration

Water System

3″ Badger turbine-type water meter
Electronic scalable transmitter with pulse head
3″ water strainer
3″ butterfly discharge valve with pneumatic actuator and solenoid
Complete piping to discharge head
10 HP water pump

Electrical System

300 amp / 480V electrical panel
Enclosed motor starters for all motors
Main disconnect wired to all motors
All equipment factory-wired and tested prior to shipment
Automatic batch controller included

Conveyors & Material Handling

Specification	Detail
Belt Width	30 inches
Conveyor Length	39 ft
Conveyor Type	CEMA B
Belt Speed	350 FPM
Throughput Capacity	650 TPH
Drive	15 HP TEFC motor with reducer and backstop
Discharge Head	Water inlet + 5 admixture ports

Dust Collection

Included (Standard): WAM Silotop Zero dust collector with 264 sq ft filter surface, pulse-jet air cleaning system, 7 polypleat filter elements, and 99.99% filtration efficiency.

Transport & Portability

Specification	Detail
Transport Configuration	Tandem axle transportation system
Mobility	Portable — movable with one truck
Setup Design	Quick setup with self-erecting hydraulic system
Hydraulic Feature	Integrated self-erection system
Lubrication	Central lubrication system

Final transport dimensions and weights depend on selected configuration and options.

Batch Controllers

The DECUM includes an automatic batch controller as part of the standard electrical package.

Compatible integrations and controller upgrades may be available upon request.

Options & Upgrades

Alternative batch controller platforms
Additional admixture systems
Moisture probes and moisture control packages
Catwalks and handrails
Silo ladder and safety cage
Additional dust collection systems
Custom transport configurations
Boiler or chiller systems
Expanded cement storage options

Best For

Portable ready-mix operations requiring fast deployment
Contractors needing single-truck plant mobility
Projects requiring self-erecting hydraulic setup capability
High-capacity batching operations with integrated cement storage
Operations requiring reliable pneumatic and automatic batch control systems

Technical Drawings

FAQ's

Is the DECUM portable?
Yes — the DECUM is designed as a portable batching plant capable of moving with a single truck using its tandem axle transportation system.

What type of batching system is the DECUM?
The DECUM is configured as a dry batch concrete plant for truck mixing applications.

Does the plant include a self-erecting system?
Yes — the DECUM includes an integrated self-erecting hydraulic system designed to simplify setup and relocation.

What aggregate capacity does the plant include?
The plant includes a 12 yd³ aggregate batcher split into two compartments.

What cement storage system is included?
The DECUM includes a 58–60 ton (400 BBL) cement silo with dual 10″ cement transfer screws and a WAM Silotop Zero dust collector.

Is dust collection included standard?
Yes — the WAM Silotop Zero dust collector with 99.99% filtration efficiency is included standard.

What water metering system is included?
A 3″ Badger turbine-type water meter with electronic scalable transmitter and pulse head is included, paired with a 10 HP water pump.

Is the electrical system pre-wired?
Yes — all electrical components are factory-wired and tested prior to shipment.

Does the DECUM include an automatic batch controller?
Yes — an automatic batch controller is included standard with the electrical system.
