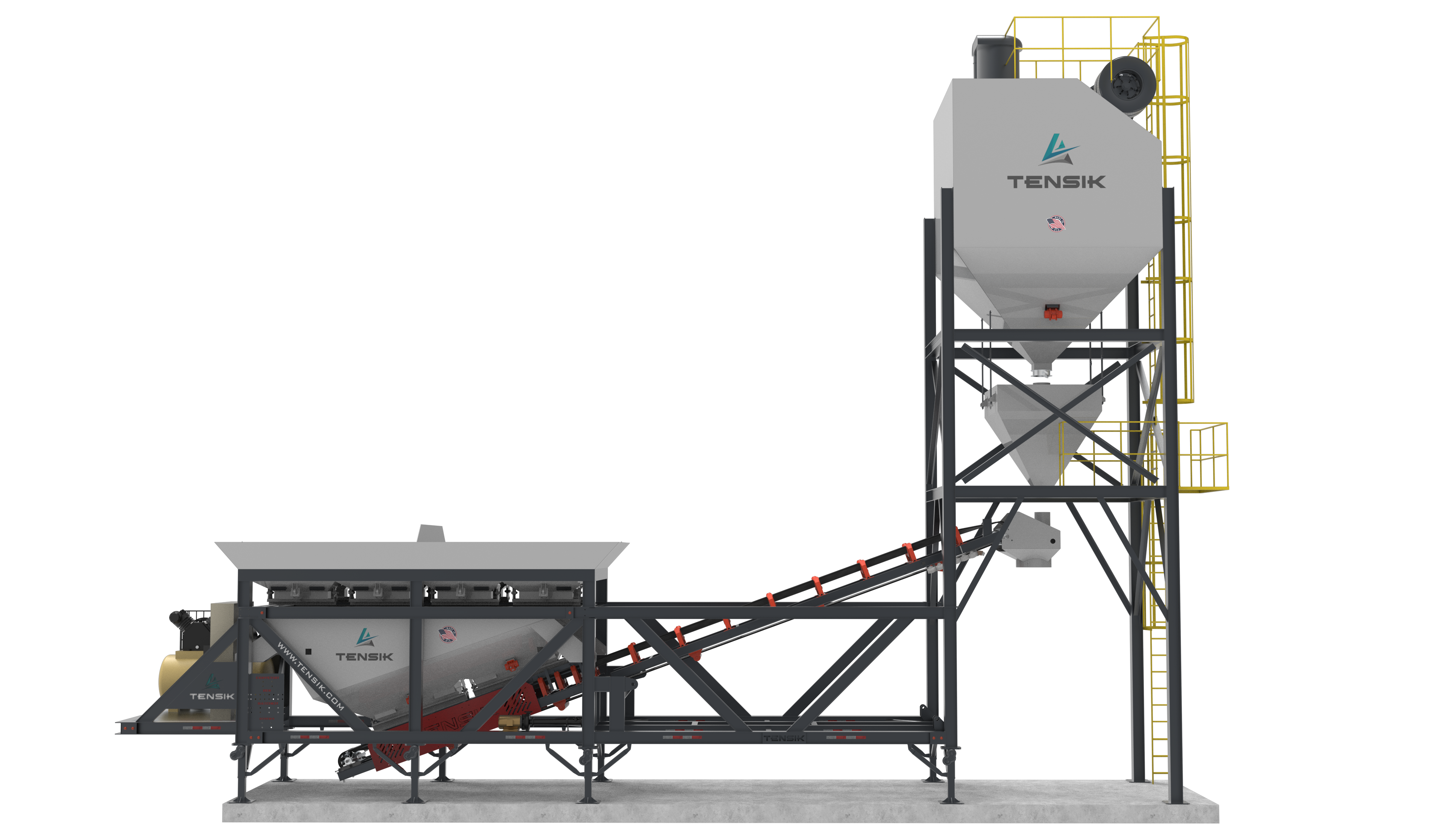

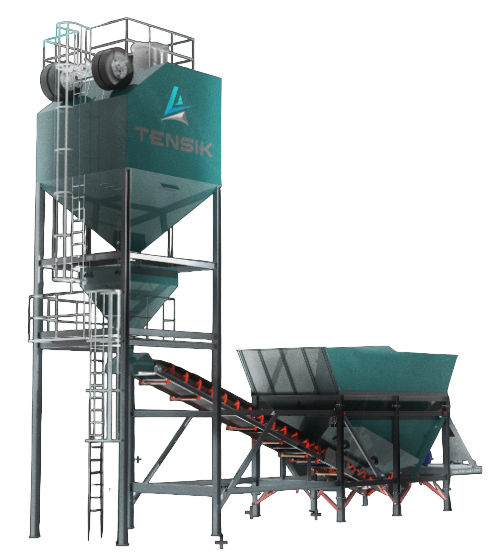

THE BLACK BEAR

2 AXLE DOT OPTIONAL GENERAL DIMENSION TRAVEL LENGTH 65 FT TRAVEL WIDTH 11 FT 8 IN TRAVEL HEIGHT 14 FT

WEIGHT (APPROXIMATE) 55,600 LB SPECIFICATIONS, MATERIALS AND CONFIGURATIONS SUBJECT TO CHANGE WITHOUT NOTICE. STANDARD–CONCRETE PADS*

DESCRIPTION

PORTABLE SQUARE CEMENT SILO 60 TON FOR FLY ASH OR CEMENT
60 tons Cement Silo – Fluidizing Kit 8 aeration pads in silo cone – 10″ Butterfly Valve or Slide gate depend on configuration, Single Flange, Cast Iron Disc Pneumatic Drive
Actuator 1/2″ 4 Way Double Solenoid Closed Port – Silo Level
Sensor Indicator (High and Low)
Pressure valve – Dust collector – WAM Silotop Zero264 sq ft filter surface Pulse-jet air cleaning system 7 polypleat filter elements 99.99% filtration efficient Bottom mounting flange, Capacities are based on a cement weight of 74.0 lbs per cubic foot
1 – 8 inch diameter screw conveyors, powered by a 15 hp Motor Drive
1 AXLE 11R22.5

CENTRAL LUBRICATIONS PANEL
Lubrication System to all bearings grease point.

ELECTRICAL SYSTEM
200 amp Panel 480 volt Enclosed box Motor Starter For all Motors The main disconnect and motor starters are wired to each motor.
All equipment is wired and tested prior to shipment.
JONEL – COMMAND ALKON – BACHTRON – RHINO
Optional batch controller quote separetly.

TECHNICAL DRAWINGS

Hourly production rate - theorical 180-200 yd3/hr base unit is movable with one truck Designed Quick Setup

FEATURES

-Hourly production rate theorical 180-200 yd3/hr

-Base unit is movable with one truck

-Design quick setup

-Scale hoppers Bin weight capacity of 12 Yds yds .

– 3/16” plate on the vertical sides and 1/4” plate on the sloped sides.

– Lubrication System to all bearings grease point.

-Weight (approximate) 55,600 lb specifications.

-Dimension travel length 65 ft travel width 11 ft 8 in travel height 14 ft.

-Test weight hangers installed.

SPECIFICATIONS

-Cement storage 60 tons Cement Silo – Fluidizing Kit 8 aeration pads in silo cone – 10″ Butterfly Valve or Slide gate depend onhconfiguration, Single Flange, Cast Iron Disc Pneumatic

Drive Actuator 1/2″ 4 Way Double Solenoid Closed Port Silo Level Sensor

– MVE vibrator is mounted, includes (4) S-beam style load cells and summing box.

-Air system complete from air compressor to all pneumatic equipment on the plant.

-Water meter (turbine type) 3 in Badger.

AGGREGATE TRANSFER CONVEYOR

Belt width 30 in – Belt drive 15 H.P. TEFC – 350 / F.P.M. – 650 T.P.H. drive motor with reducer and backstop 4 inch Idler roller and Return roller Cema
B – Self Cleaning Blade – Doge pillow block.
12 inch drum pulley and wing pulley Skirt Boards Installed
Discharge head includes a water inlet, (5) admix ports.
* Safety features include a head and tail pulley guard and safety trip switch with cable up one side of the charging conveyor

CEMENT STORAGE 60

Cement storage 60 tons Cement Silo – Fluidizing Kit 8 aeration pads in silo cone – 10″ Butterfly Valve or Slide gate depend onhconfiguration, Single Flange, Cast Iron Disc Pneumatic
Drive Actuator 1/2″ 4 Way Double Solenoid Closed Port Silo Level Sensor
Indicator (High and Low)
Pressure valve – Dust collector – WAM Silotop Zero264 sq ft filter surface Pulse-jet air cleaning system 7 polypleat filter elements 99.99% filtration efficient Bottom mounting flange, Capacities are based on a cement weight of 74.0 lbs per cubic foo

BATCHER CAPACITY

Cement 5 Tons – Enough for a 12 yd batch Truck
10” butterfly discharge valve including pneumatic actuator and solenoid for material flow control.
Proximity switch confirms the gate is in closed position.
Complete aeration system with full size pads.
• MVE vibrator is mounted
• includes (4) S-beam style load cells and summing box.

AIR SPECIFICATIONS:

10 H.P. / 120-gallon air compressor with ¾” outlet – 20 HP UPGRADE AVAILABLE
• A weather tight NEMA enclosure for Main plant solenoids. Each valve is equipped with a “Quick” cut off to allow the customer isolation of the individual valves for easy maintenance.
• Air system complete from air compressor to all pneumatic equipment on the plant.
• 5hp Blower For Aeration
All Psolenoids Valves Parker or Mac Brand

WATER SYSTEM

Water meter (turbine type) 3 in Badger
Meter with electronic scalable transmitter and pulse head 3” turbine type water meter.
* 3” water strainer.
* 3” butterfly discharge valve with pneumatic actuator and solenoid valve.
* Complete piping to discharge head
10 hp Water PUMP
