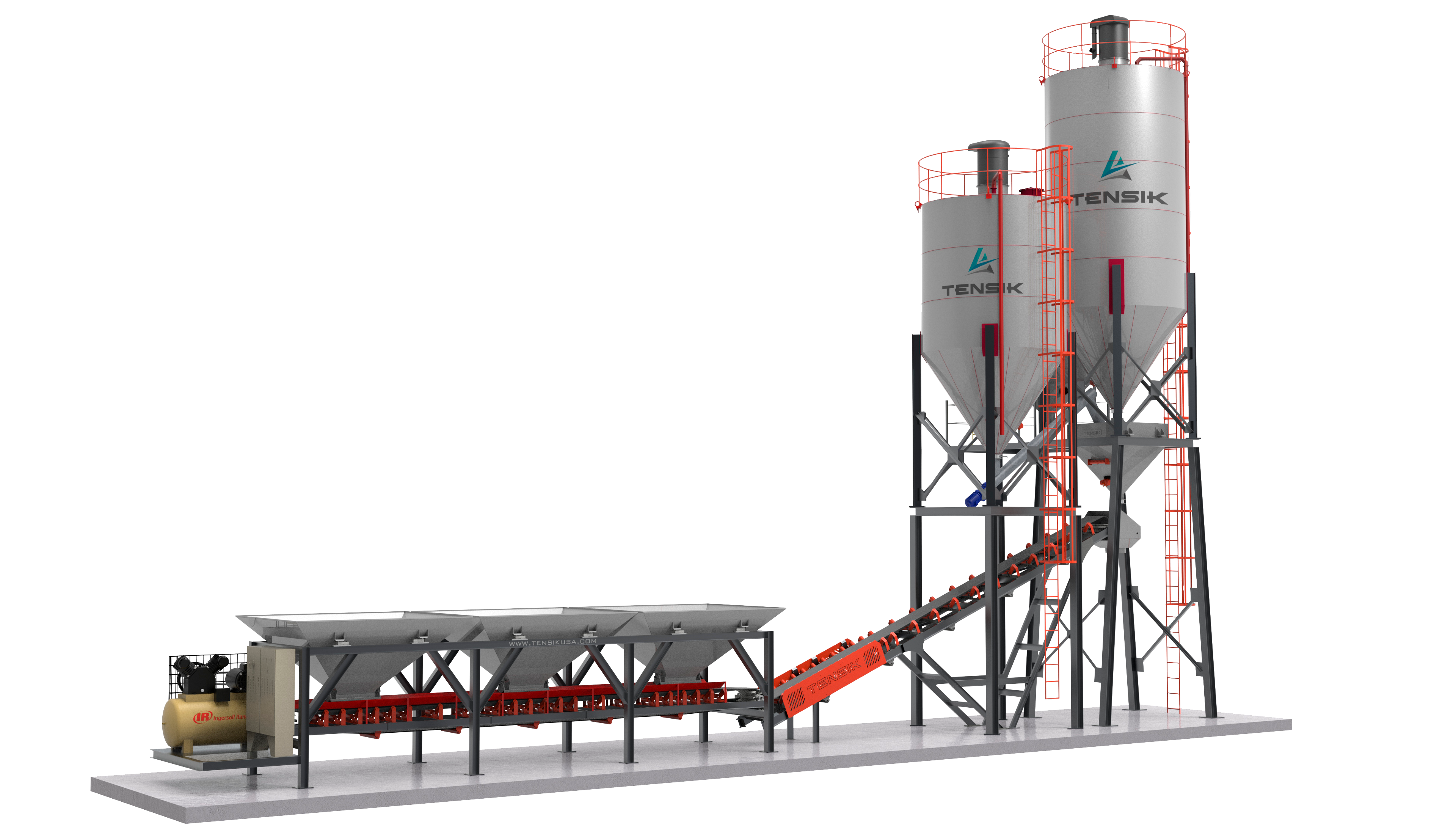

The TENSIK 100 system has a theoretical hourly production rate of 150-200 yd3/hr. It is designed for quick set-up and is movable with one truck . The system includes a 10 hp water pump, a 12 cubic yard aggregate batcher, and a surge tank with a capacity of 60 tons . It also features a weighted water system with a 3″ turbine type water meter, a water strainer, and a butterfly discharge valve with pneumatic actuator and solenoid valve . The system is equipped with a central lubrication panel and a self-erected hydraulic system.
– Portable concrete batching plant
– Quick set-up
– Movable with one truck
– Theoretical hourly production rate of 150-200 yd3/hr
– Weighed water system
– 10 hp water pump
– 12 cubic yard aggregate batcher
– Surge tank with a capacity of 60 tons
– 3″ turbine type water meter
– Water strainer
– Butterfly discharge valve with pneumatic actuator and solenoid valve
– Central lubrication panel
– Self-erected hydraulic system
– Electrical system with 200 amp panel and enclosed box motor starter for all motors
– Aggregate batcher bin weight capacity of 12 yds yds
– Aggregate batcher made of 3/16″ plate on the vertical sides and 1/4″ plate on the sloped sides
– (2) clamshell gates
– (2) 5″ x 8″ air cylinders and an inching valve for greater control of material flow
– (2) MVE type vibrators
– 4 x 20K, NTEP certified, load cell system with a rated scale capacity Rice Lake
– Test weight hangers installed
– Hydraulic system with 1 axle
– General dimensions of 65 ft travel length, 11 ft 8 in travel width, and 14 ft travel height
– Approximate weight of 55,600 lb
